| MC110.100 Wikco Brand Motorcycle Tire Changer |
Motorcycle
Wheel Balance Model
# MC110.100
|
 Shown

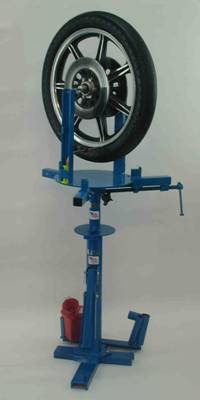

Optional With BMC112 Wheel Balancer
|
 Custom
Demount / Mount Bar
Part Number 100-14C |
 Clamp Hooks / Protective Plastic End |
 Bead
Breaker Shoe
|
 Bead
Breaker Channel
|
 Demount
End (PN100-14A)
|
 Mount
End (PN100-14C1)
|
Features/Specifications
The MC110.100 is now equipped with our new rim clamp hooks with protective plastic ends, as shown above. The motorcycle vise clamps are tall enough that brake disk(s), belt drive pulley, or sprocket can be left bolted to the rim when changing the tire.
Drawing / Parts List
|
|
 |
| MC110.100 Parts: | ||
| Part Number | Description | Quantity |
| Part 100-1 | Tire Changer Stand | 1 |
| Part 100-2 | Tire Changer Cap | 1 |
| Part 100-3 | Wheel Lug Pin | 1 |
| Part 100-4 | Spider | 1 |
| Part 100-5 | Clevis Pin | 2 |
| Part 100-6 | 3/8" bolts | 4 |
| Part 100-7 | Bead Breaker Handle | 1 |
| Part 100-8 | Bridge Pin | 2 |
| Part 100-9 | Short Base Channel | 2 |
| Part 100-10 | Bead Breaker Shoe | |
| Part 100-11 | 3/8" Flat Washer & Lock Washer | 4 Sets |
| Part 100-12 | 3/8" Nut | 4 |
| Part 100-13 | Long Base Channel | 1 |
| Part 100-14C | Large Custom MountlDemount Bar | 1 |
| Part 100-14A | Replaceable Demount End | 1 ($5.95 ea.) |
| Part 100-14B | Bolt (Demount End) | 1 ($1.50 ea.) |
| Part 100-14C1 | Replaceable Insert (Mount End) | 1 ($5.95 ea.) |
| Part 100-15 | Tool Holder Assembly | 1 |
| Part 100-17 | Lubricant Bottle | 1 |
| Part 100-18 | Applicator Swab | 1 |
| Parts List: MC110 Wheel Vise | ||
| Part 110-100-1 | Center Post, 9/16" diameter | 1 |
| Part 110-100-2 | Center Post, 7/16" diameter | 1 |
| Part 110-100-3 | Slider Clamp | 2 |
| Part 110-100-4 | Bridge pin and clevis pin set | 2 |
| Part 110-100-5 | Clamp Screw | 1 |
| Part 110-100-6 | Frame | 1 |
| Part 110-100-7 | Knob | 1 |
| Part 110-100-8 | Lug Bolt Stop | 1 |
Model # 110.HA 2 Inch Receiver Hitch Attachment
Price Is $74.95 Plus $15.00 UPS Ground Shipping
 |
 |
The Model # 110.HA Hitch Attachment allows you to mount any of the Wikco brand tire changers to your car or truck 2 inch receiver hitch. This includes the model # MC110.100 motorcycle tire changer, model # MC110.200 motorcycle tire changer, and the model # STC100.103 manual tire changer with the small tire accessory. One end of the attachment bolts to the tire changer using the 2 U-bolts and the 2 V-shaped clamps (included). The other end inserts into the 2 inch receiver hitch on your vehicle. The hitch attachment gives you approxamently 20 inches of length from the end of the receiver hitch, and is adjustable several inches up or down.
Used by professional shops of all sizes, lawn and garden centers, power equipment shops, golf courses, city park departments, and do it yourself garages and shops.
Model #109 ATV Bead Breaker
The 109ATV Bead Breaker Shoe also has a lever arm that attaches so you can keep the bead breaker shoe tightly against the rim. Ideal for breaking the bead on ATV wheels, also the Bead Breaker Shoe works great on motorcycle wheels, now included is a protective plastic insert that will protect the wheels from scratching, and gouging. This item , and all Wikco Industries tire changing tools and accessories are designed to fit only Wikco brand products, and are not recommended for use with other brand of tire changers.
Price is $49.95 Plus
$12.00 UPS Ground Shipping.
