Model # BMC112
Wikco Industries, Motorcycle Spin Type Wheel Balance |
Pric Is $229.00 Free Ground Shipping
($20.00 Value)
Free Shipping Limited To The Continential United States.

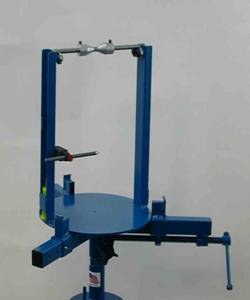

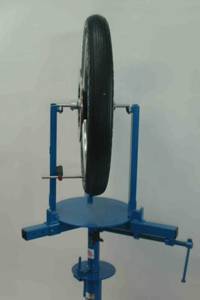

The Wikco
Industries, Motorcycle Spin Type Wheel Balancer is the perfect tool for
small shops, clubs, and individuals that need an inexpensive, easy to
use, wheel balancer for motorcycle wheels. The Wikco Wheel Balancer
fits most motorcycle wheels (motorcycles with shaft drive and/or single
sided swing arms may need a special adapter which we can supply, see
below). The unit can set on a table top or be clamped into the Wikco
MC110.100 or the MC110.200 rim clamp motorcycle tire changers, or most
other rim clamp motorcycle tire changers. This balancer has several
unique features including a magnetic holder and guide rod to help you
quickly and easily tell if your wheel is true.
- Features/Specifications
- Easy to use spin-type wheel balancer works for motorcycle
wheels that have a center hole through the rim
- Custom adapters available for shaft drive bikes and/or
bikes with a single sided swing arm
- Comes with level to level balancer on table top, or when
clamping it in the jaws of rim clamp tire changers - can be mounted on
top of your tire changer, which gives you a solid, secure way to mount
and hold the balancer firmly in place
- Also includes tire crayon to mark wheel, and 2 strips of
Tape-A-Weight.
- Comes standard with magnetic base and metal reference rod
to determine whether or not wheel is running true by checking wheel run
out, checks for radial and lateral wheel run out
- Locking cones center and hold wheel on balancer shaft for
proper operation and accuracy wheel balancing a wheel
- All steel construction for years of service
- Wheel balancer is perfect for use by small shops, bike
clubs, and individuals that want to be able to balance motorcycle
wheels easily; balances within 1/4 ounce.
- Model BMC112: Manual motorcycle wheel spin balancer accepts
standard motorcycle wheels, shaft drive bikes and single sided swing
arm bikes may require a custom adapter, see special offer below.
- Shipping weight is 32 lbs.
- Custom Wheel adapters are available when needed.

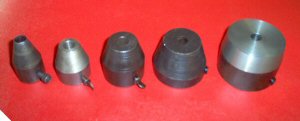

Custom
Wheel Adapters:
Model 112-6:
Wheel cone, standard size that comes with balancer, maximum diameter
1.125 inches (1 1/8), minimum diameter .5 inches, length 1.125 inches.
Model CWA1:
Wheel cone, one of pair that is used for Honda VFR models, maximum
diameter 1.375 inches, minimum diameter .815 inches, length 1.75 inches.
Model CWA2:
Wheel cone, used for most BMW motorcycles with single sided swing arms
on back wheel, maximum diameter 1.75 inches, minimum diameter 1.125
inches, length 1.75 inches
Model CWA3:
Wheel cone, one of pair that is used for Honda VFR models, maximum
diameter 2.25 inches, minimum diameter 1.642 inches, length 1.75 inches.
Model CWA4:
Wheel cone, for any rim with large hole in rim, has 2.25 inch
hole minimum, with 0.50 wide step, then up to maximum diameter of 2.40
inches, total cone length is 1.75 inches.
Price is $23.95 per cone
Plus
Shipping.

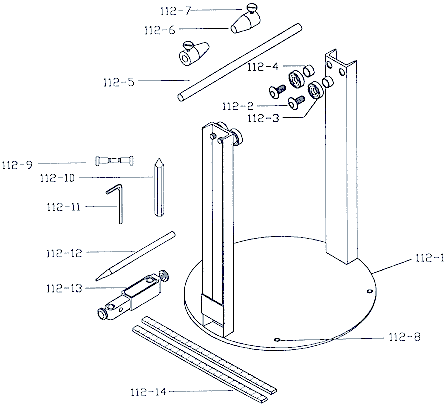

Parts
Drawing / List
|
Parts List- Model BMC112 Wikco
Manual Motorcycle
Spin Balancer
Part Number
Description
Quantity Required
112-1: Balancer
Frame
1
112-2:
Allen
Bolts
4
112-3:
Bearings 4
112-4: Bearing
Spacers
4
112-5:
Wheel
Shaft 1
112-6: Wheel
Cone
2
112-7: Thumb
Screws 2
112-8: Leveler
Screws
3
112-9: Level
1
112-10: Tire
Crayon 1
112-11: Allen
Wrench 1
112-12: Reference
Rod 1
112-13:
Magnetic Holder for Reference
Rod
1
112-14:
Chrome
Adhesive Wheel Weight Strips
2
|
To Order Products Or Parts Call Toll Free
800-872-8864
