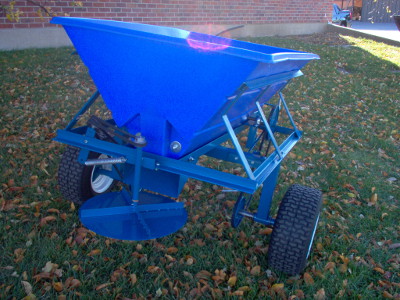

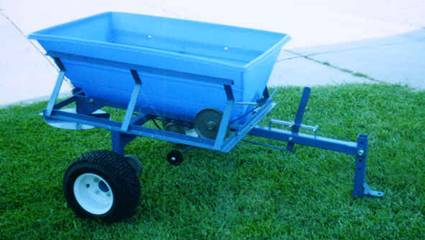

Features/Specifications

• 9 cubic ft. capacity hopper (large granules will weigh around 400 lbs., small granules like sand will weigh around 800 lbs.)
• Non-rust tough poly hopper, dimensions - 48 inches long x 18 inches high x 30 inches wide at top

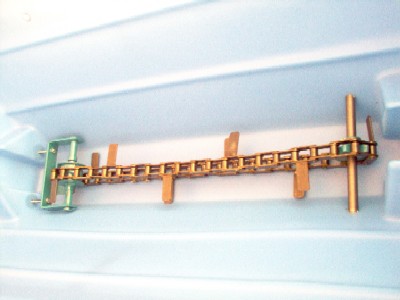

• Internal steel drag chain to break up material and help drag material toward hopper opening, runs the length of the hopper
• Heavy steel frame won't flex or bend
• Spreader is stable, wheel width measures 48 inches wide from outside of wheel to outside of wheel
• Wheels are high flotation 16 x 6.50 - 8.00 tires with turf tread tires
• Spreader can be towed by garden and utility tractors with 12 hp or more, and by most ATV's in this size range

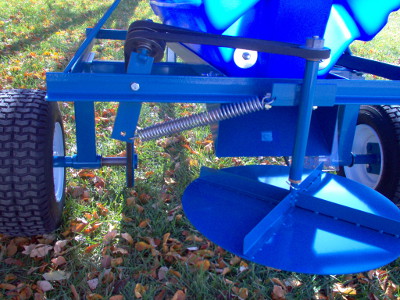

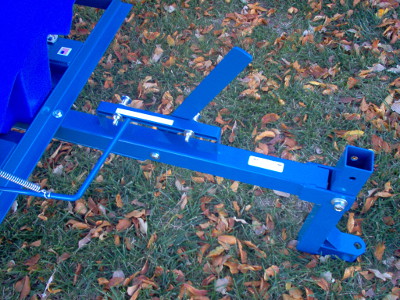

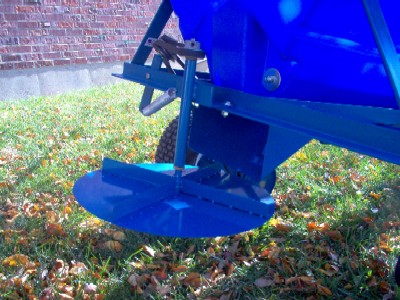

• Ground driven spreader: one wheel drives spinner with v-belt; one wheel drives drag chain with v-belt, has clutch lever to engage/disengage drag chain, spinner always turns, material door has lever on tongue to open or close.
• Spreader weighs approximately 200 lbs.
• Shipped by truck on one pallet, weighs approximately 240 lbs.

Please allow 14 working days for receipt of all items, especially truck shipments. Many items can be delivered sooner, but no cancellations or delivery refusals will be accepted on orders delivered within the 14 working days from your placing of the order.

All "shipping charges" refer to standard shipping charges where delivery is to a commercial / business location where if delivery is by common carrier (truck) they will deliver the freight to the delivery address, and you must have a way to unload it. If you don't have a way to unload it, and you don't have personnel to unload the freight by hand, and services such as a lift gate are required, a minimum extra charge of $75.00 will apply, but this charge varies for each terminal location, so this would be the minimum and could be as high as $180.00. Standard delivery for truck shipments means to your dock or door. If the item needs to be placed inside your warehouse by the trucking company, there will also be an inside delivery charge. If the shipment is delivered to a non commercial, or residential address you may choose to pick up at the  Freight Company's Terminal, in most cases this saves on additional shipping charges. Any special services should be requested at the time of the order. If you have any questions about delivery, please contact us, toll free at 800-872-8864.

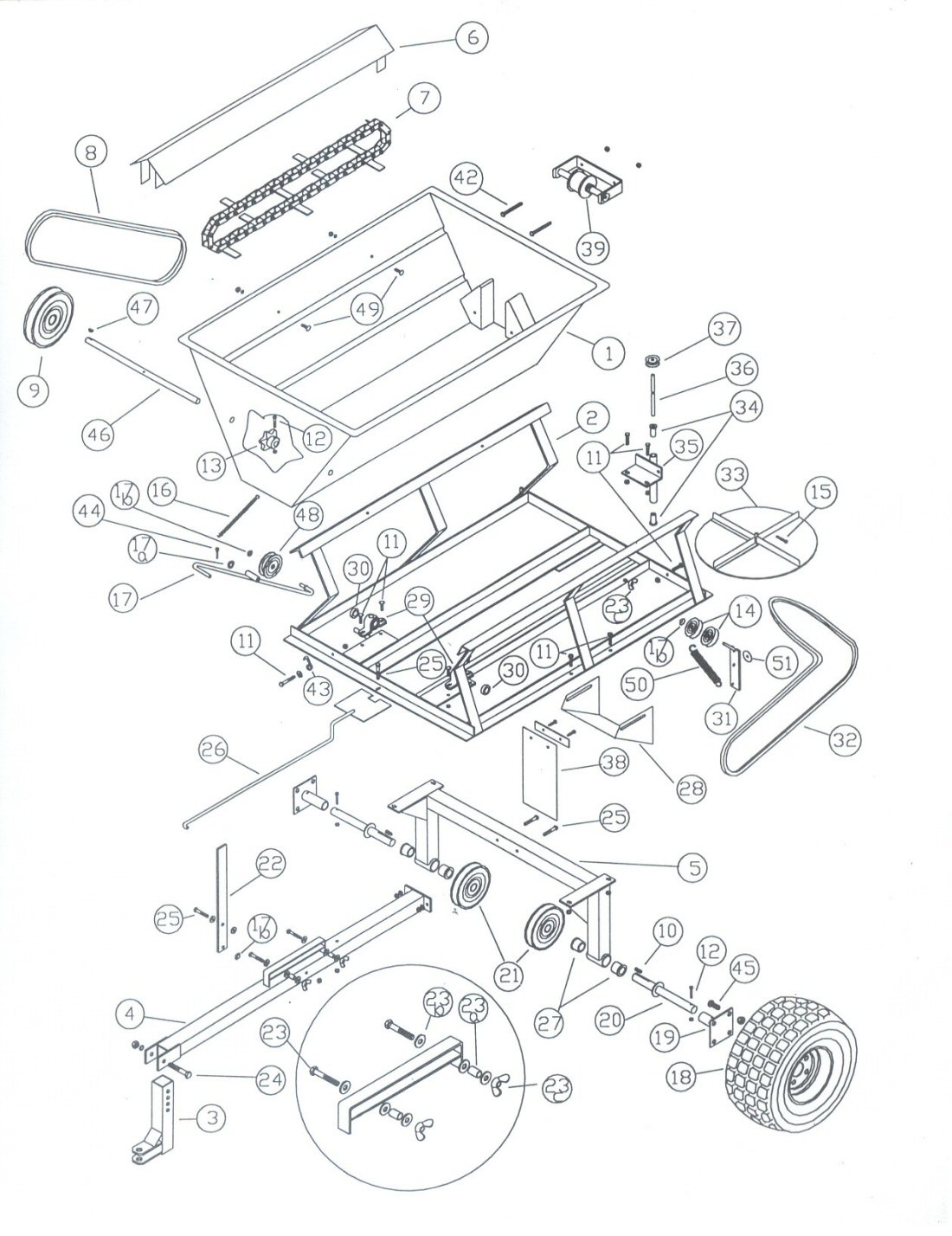

Parts List / Drawing

Model 800 Turf Spreader - Parts List Reference# Description Quantity Part No. List Price 1 Hopper 1 800-1 $125.00 2 Hopper Frame Assembly 1 800-2 $185.00 3 Tongue Front Member 1 800-3 $35.00 4 Tongue Assembly 1 800-4 $59.00 5 Axle SupportAssembly 1 800-5 $85.00 6 Internal Baffle Assembly 1 800-6 $35.00 7 Drag Chain Assembly 1 800-7 $79.00 8 Drag Chain Drive Belt (69") 1 800-8 $14.95 9 8” Drive Pulley (3/4” bore) 1 800-9 $28.00 10 1/4” Keyway 2 800-10 $0.95 11 5/16”x 1” Bolt, Nut,Washer 7 800-11 $0.50 12 1/4” x 1 3/4” Bolt, Locknut 3 800-12 $0.75 13 Chain Drive Sprocket 1 800-13 $18.95 14 Idler Pulley Assembly (Fan Drive) 2 800-14 $17.00 15 3/32” Kotter Key 1 800-15 $0.25 16 Clutch Spring 1 800-16 $6.00 17 Clutch Lever 1 800-17 $16.00 17a. 1/2”PushNut 1 800-17a $0.85 17b. 3/8" Push Nut   3 800-17b $0.75 18 Wheel & Tire Assembly 2 800-18 $63.00 19 Wheel Hub 2 800-19 $18.00 20 Main Axle 2 800-20 $23.00 21 Drive Pulley (6” x I” bore) 2 800-21 $25.00 22 Calibration Lever 1 800-22 $15.00 23 5/16” x 2” Bolt, Nut; Washer 2 800-23 $1.25 23a. 3/4” L Spacer 2 800-23a $0.85 23b. 5/16” Flat Washer 6 800-23b $0.25 23c. 5/16” Wing Nut 3 800-23c $0.50 24 1/2” x 3 1/4” Bolt, Nut; Washer 1 800-24 $3.00 25 5/16” x 2 3/4” Bolt, Nut, Washer 4 800-25 $1.75 26 Calibration Door Assembly 1 800-26 $33.00 27 1" Bushing 4 800-27 $4.75 28 Discharge Chute 1 800-28 $19.00 29 Pillow Block Bearing 2 800-29 $17.00 30 3/4” Set Collar 2 800-30 $3.45 31 Idler Pulley Bracket 1 800-31 $9.95 32 Fan Drive V-Belt (80”) 1 800-32 $14.95 33 Fan Assembly 1 800-33 $33.00 34 Fan Bearing 3/8” (Wood) 2 800-34 $7.50 35 Fan Support Bracket 1 800-35 $15.00 36 Fan Drive Shaft 1 800-36 $11.00 37 Fan Drive Pulley (1 1/2” x 3/8”) 1 800-37 $9.50 38 Mud Flap Assembly with screws 1 800-38 $11.95 39 Chain Idler Pulley Assembly 1 800-39 $29.00 42 Chain Idler Adjustment Bolt, Washer, Nut 2 800-42 $3.50 43 Clutch Lever Latch 1 800-43 $5.00 44 1/8” Cotter Pin 1 800-44 $0.25 45 Wheel Stud, Bolt & Nut 8 800-45 $3.25 46 Drag Chain Drive Shaft (3/4”) 1 800-46 $25.00 47 Keyway lnsert (3/16X5/*8") 1 800-47 $0.60 48 Clutch Idler Pulley 1 800-48 $14.00 49 5/16” x 1” Carriage Bolt, Nut; Washer 4 800-49 $1.25 50 Spring- Idler Adjustment Bracket 1 800-50 $9.00 51 5/16” FIat Washer 2 800-51 $0.25

To Order Products Or Parts Call Toll Free 800-872-8864
