The Self-Change 160 is our manual tire changer with an air bead seater. No other manual tire changer has this feature, or can do the wide size range of the Self-Change 160. The Self-Change 160, like the Self-Change 100.103 lets you change tires on wheels with rim sizes from 4" in diameter with the bearing in the hub, up through 16.5" in diameter on pickups and farm tractors. The air blast bead seater works exceptionally  well on tires that for shipping purposes are  compressed, and flattened . Also is equipped with air  extention  tubes for the smaller  tiers,

The Self-Change Tire Changers are the most versatile tire changers made. There have been copies of our machine, exact, and different looking designs, but none of them have all the features of the Self-Change tire changers. The Self-Change tire changers are made in the USA and are designed to work and last; both the model 100.103 and model SC160 have 2 year warranties.

Features/Specifications

• The Self-Change 160 Manual Tire Changer With Air Bead Seater.
• Change Tires On Power Equipment, Mowers, Golf Carts, ATVs, Go-Karts, Trailers, Cars, and Pickups.
• Used By Power Equipment Shops, Golf Courses, Landscape Companies, Schools and Tire Shops.
• Has bead breaker that works on all sizes.
• All steel construction for heavy duty use.
• Change tires on wheels with rim sizes from 4", through 16.5", up to 12" wide.
• Built in air bead seater uses any shop air compressor that can go up to 120 psi.
• Comes with rack to hold accessories and mount/demount bars.
• Accessory available for motorcycle and open center trailer or car wheels.
• Made in the USA and warranted for 2 years.
• Shipped in one box, approximately weight = 150 lbs.

The MC110 Attachment is designed to fit on the Self-Change 160 (MC110.160) only. Change wheels on mini-bikes, motorcycles, and open center ATV and trailer wheels.

• The MC110.160 Motorcycle Tire Changer lets you change tires on motorcycle, dirt bike, mini-bike, and ATV wheels with rim diameters from 8 inches up through 21 inches.
• The MC110.160 comes with our custom wheel bar for motorcycle and other wheels with aluminum, chrome, or painted rims.
• The custom wheel bar tire tool prevents scratching and gouging of these wheels. The delrin plastic inserts on the bars will last for many uses, but can be easily replaced when needed.
• The MC110.160 is also equipped with the newly designed Heavy Duty Wheel Clamps that have Heavy Duty Plastic Protective Ends that prevent scratching and gouging of the wheels.The rim clamps are tall enough that brake disk(s), belt drive pulley, or sprocket can be left bolted to the rim when changing the tire.
• Price Is $240.00 plus $30.00 shipping.



       MC110.160 Motorcycle Tire Attachment                          Heavy Duty Wheel Clamps

Model #109 ATV Bead Breaker

The 109ATV Bead Breaker Shoe also has a lever arm that attaches so you can keep the bead breaker shoe tightly against the rim. Ideal for breaking the bead on ATV wheels, also the Bead Breaker Shoe works great  on motorcycle wheels, now included is a protective plastic insert that will protect the wheels from scratching, and gouging. This item , and all Wikco Industries tire changing tools and accessories are designed to fit only Wikco brand products, and are not recommended for use with other brand of tire changers.



Price is $49.95 Plus $12.00 UPS Ground Shipping.

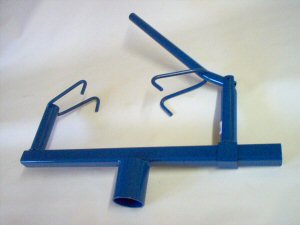

Wikco Industries Model # 101 Tire Spreader

This helpful attachment fits on top of the Self-Change 100, the SC160, the STC 100.103, and the STC 104.  The 101 spreads the tire apart so it can be repaired easier. With its lever action and adjustable handle, it lets you work on a wide size range of wheels (4" -16.5" diameter rims).  Features all steel construction like all our products.  This item , and all Wikco Industries tire changing tools and accessories are designed to fit only Wikco brand products, and are not recommended for use with other brand of tire changers.

Price is $49.95 Plus $12.00 UPS Ground Shipping.

Protective Rubber Strip with 3-M peel & stick glue, sized to fit the bead breaker channel.
Prevent scratching and gouging of the wheels.
Part #100-13PRS. Price: $9.95 Includes shipping.

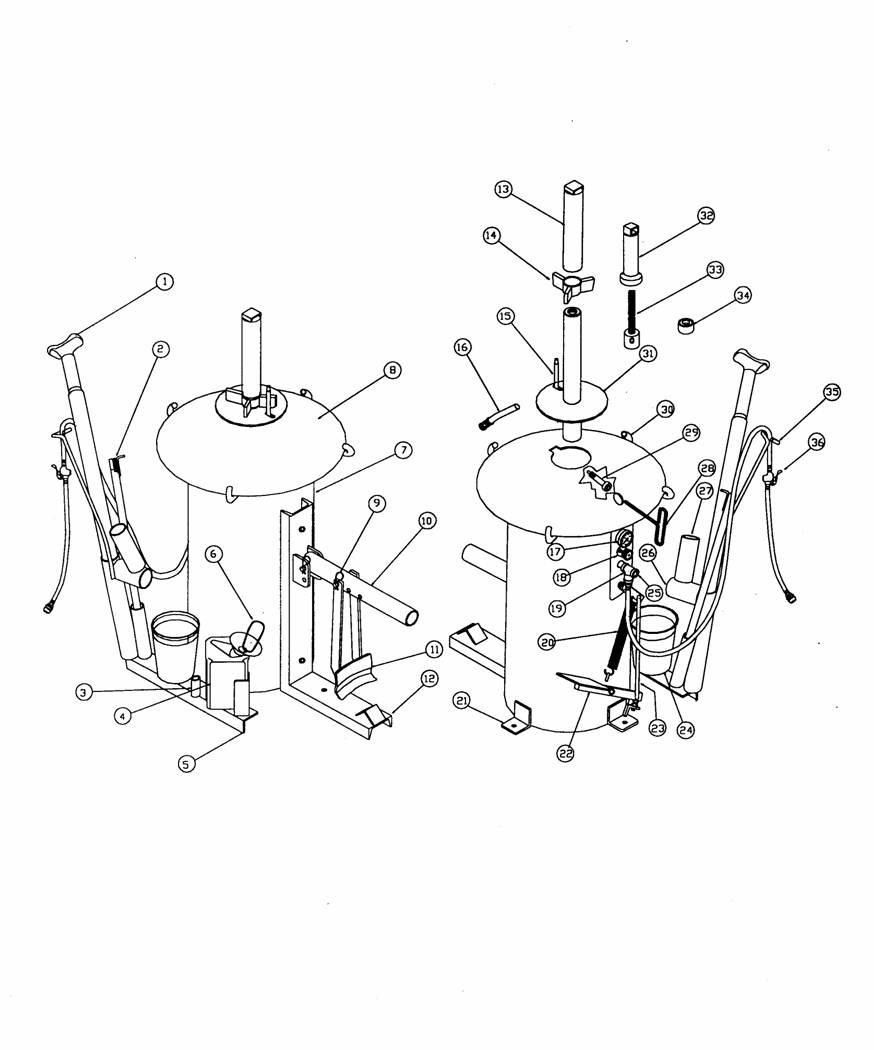

Parts Drawing



1. #100-14 Large mount/demount bar (1)

2. #103-4 Small mount/demount bar (1)

3. Holder for small center post (part of ref. #5 tool holder assembly

4. #160-4 Lubricant bottle (1)

5. #160-5 Tool holder assembly frame (1)

6. #160-6 Swab for lubricant bottle (1)

7. #160-7 Base tube assembly (1)

8. #160-8 Cone assembly and air tube assembly (1)

9. #160-9 Bridge pin (2)

10. #160-10 Bead breaker handle (1)

11. #160-11 Bead breaker shoe (1)

12. #160-12 Bead breaker channel (1)

13. #160-13 Large center post hold down cap (1)

14. #160-14 Center post spider (1)

15. #160-15 Lug hold stud (1)

16. #160-16 Air tube extensions (4)

17. #160-17 Pressure gauge (1)

18. #160-18 Regulator valve (1)

19. #160-19 Control panel mounting plate w/hardware (1)

20. #160-20 Return spring for pedal (1)

21. Mounting tab, 3 welded to #160-7 base tube

22. #160-22 Foot pedal (1)

23. #160-23 Foot pedal rod (1)

24. #160-24 Parts container for tool holder (1)

25. #160-25 T- fitting (1)

26. Tool holder receptacle for small center post when its not in use

27. Tool holder receptacle for larger center post cap and spider when it’s not in use

28. #160-28 Hex Key - 3/8” T-handle type (I)

29. #160-29 Allen screw to hold center posts in place (1)

30. Air tube assembly part of part #160-8

31. #160-31 Large center post assembly (1)

32. #160-32 Small hold down cap (1)

33. #160-33 Small center post (1)

35. Hose holder for inflator hose assembly (part of #160-5 tool holder assembly)

36. 160-36 Inflator hose assembly (1)

Please allow 14 working days for receipt of all items, especially truck shipments. Many items can be delivered sooner, but no cancellations or delivery refusals will be accepted on orders delivered within the 14 working days from your placing of the order.

All "shipping charges" refer to standard shipping charges where delivery is to a commercial / business location where if delivery is by common carrier (truck) they will deliver the freight to the delivery address, and you must have a way to unload it. If you don't have a way to unload it, and you don't have personnel to unload the freight by hand, and services such as a lift gate are required, a minimum extra charge of $75.00 will apply, but this charge varies for each terminal location, so this would be the minimum and could be as high as $180.00. Standard delivery for truck shipments means to your dock or door. If the item needs to be placed inside your warehouse by the trucking company, there will also be an inside delivery charge. If the shipment is delivered to a non commercial, or residential address you may choose to pick up at the  Freight Company's Terminal, in most cases this saves on additional shipping charges. Any special services should be requested at the time of the order. If you have any questions about delivery, please contact us, toll free at 800-872-8864.

To Order Products Or Parts Call Toll Free 800-872-8864
